93 ext 580z aglt mod

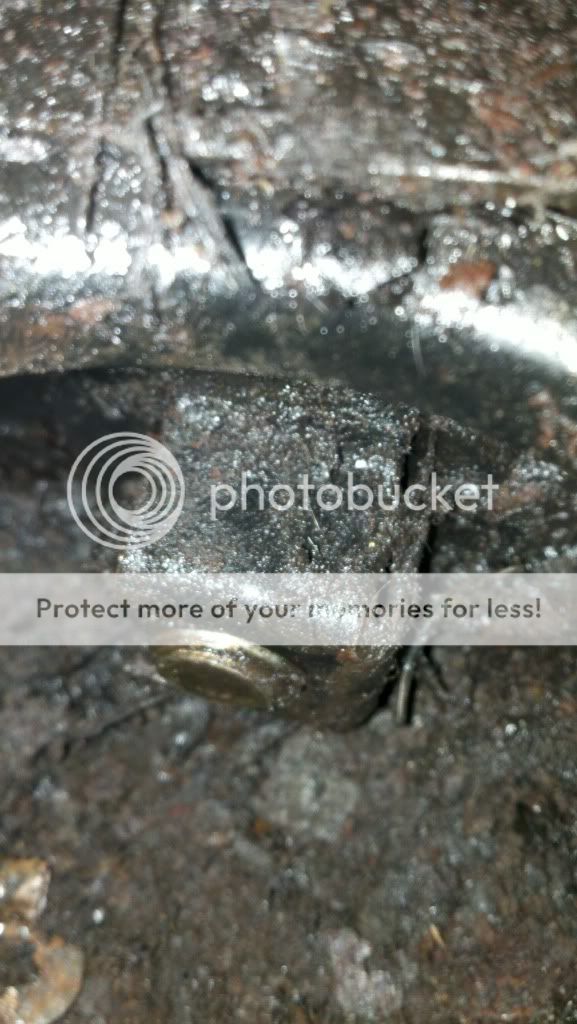

ok guys i really need your help with this one this project has turned out alot harder then i thought (as thay always do). i got a few pics and im going to be posting throu out this project so you can learn as well as i do lol. but right know need help really really bad.the lower control arm's rear bolt wont come off and on closer inspection it has what looks like some kind of cover over the nut and the nut is just spinning with no way to get a wrench on it. can some one please give me some advice on this.[IMG][/IMG]this is what it looks like i got my phone in the hole to take the pic.

need more snow!!!
nightraven is offline
Sponsored Links
Advertisement

post #2 of 51 Old 06-20-2011, 05:12 PM Thread Starter
Senior Member

nightraven's Avatar

Senior Member
Join Date: May 2011
Location: weastern, ny
Posts: 166
Thanks: 2
Thanked 5 Times in 5 Posts
Garage
Sled: 07 f1000 sp/ ext 580z 1993

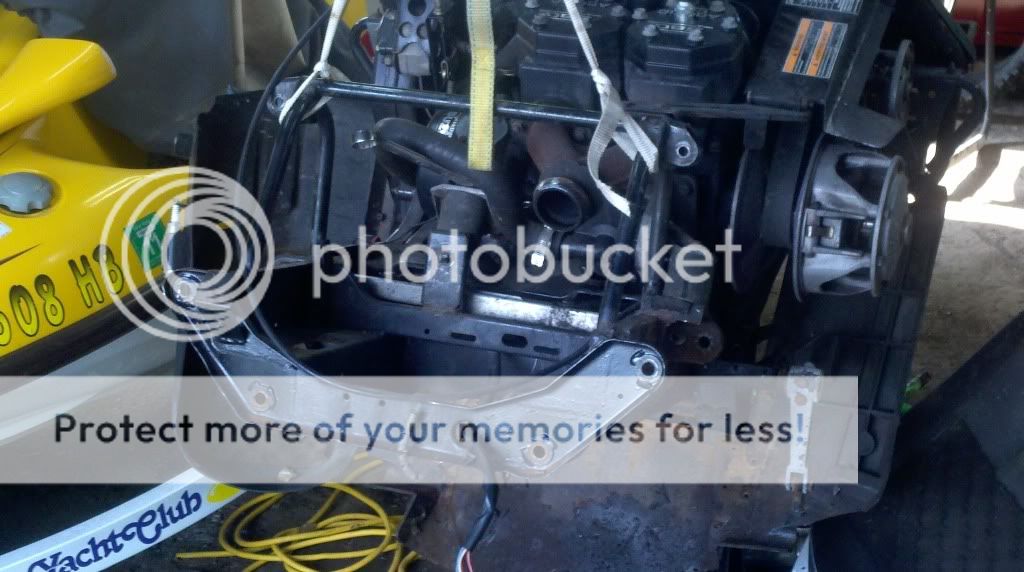

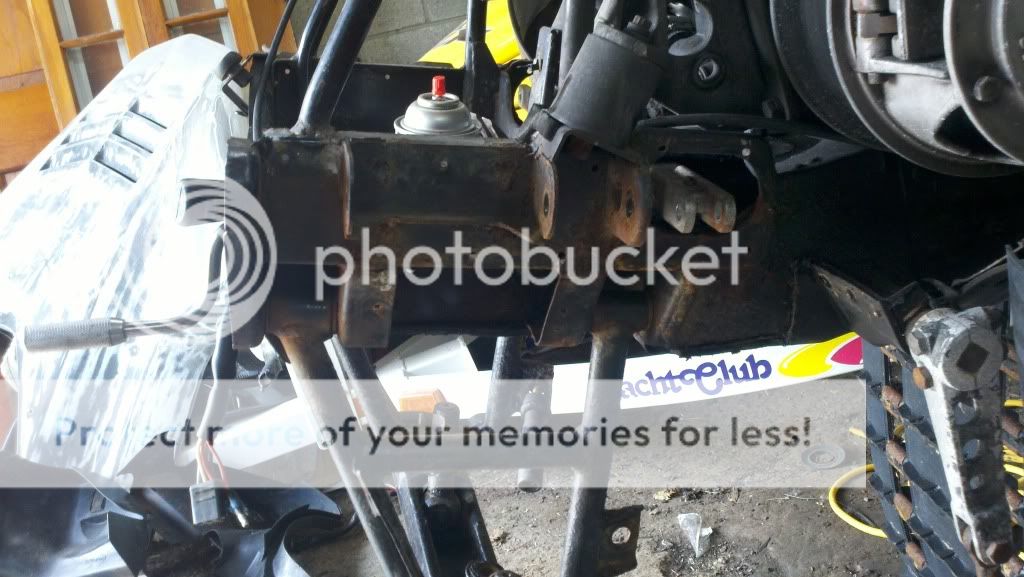

well i got the retainers off had to cut the bolts here are come pics so far [IMG][/IMG] the two middle tabs have to be cut off in order to get the newer a arms in place and spacers will have to be mad im going to weld the spacers in place because with removing the two inner tabs it is going to make the brackets weaker that way it will reinforce the outer brackets.

need more snow!!!
nightraven is offline
post #3 of 51 Old 06-20-2011, 05:15 PM Thread Starter
Senior Member

nightraven's Avatar

Senior Member
Join Date: May 2011
Location: weastern, ny
Posts: 166
Thanks: 2
Thanked 5 Times in 5 Posts
Garage
Sled: 07 f1000 sp/ ext 580z 1993
this project is i lot more in volved then just a swap so i dont avise it for someone that has trouble fabricating and figuring out little problums lol. im to far into it to stop lol

need more snow!!!
nightraven is offline
Sponsored Links
Advertisement

post #4 of 51 Old 06-20-2011, 07:02 PM
kev
Senior Member

kev's Avatar

Senior Member
Join Date: Aug 2005
Location: Georgetown, ON Canada
Posts: 6,647
Thanks: 121
Thanked 216 Times in 212 Posts
Sled: 95 ZRT 800 AGLT, 92 Jag 440, 14 XF9000
10-11 Mileage: 800
09-10 Mileage: 679
08-09 Mileage: 1000
07-08 Mileage: 1600
06-07 Mileage: 728
ATV: 50cc
The 93 definitely won't be a direct swap. With the correct chassis to start with it's pretty straightforward tho. Hopefully you won't end up with any weird camber issues.
kev is offline
post #5 of 51 Old 06-20-2011, 08:17 PM Thread Starter
Senior Member

nightraven's Avatar

Senior Member
Join Date: May 2011
Location: weastern, ny
Posts: 166
Thanks: 2
Thanked 5 Times in 5 Posts
Garage
Sled: 07 f1000 sp/ ext 580z 1993
what do you mean and what should i look out for? im kinda winging this lol im good at fabricating things and everyone kept telling me it was going to be ez lol. any advice at this point would be great. that is one and probably the main reason for starting this thread was for help advice and if anyone was thinking of doing this to this type of chassie thay would have something to look at.

need more snow!!!
nightraven is offline
post #6 of 51 Old 06-20-2011, 09:17 PM
Senior Member

leighthomas's Avatar

Senior Member
Join Date: Nov 2009
Location: milton ont
Posts: 547
Thanks: 1
Thanked 14 Times in 14 Posts
Sled: zrt 800 aglt 136' 03 f7 snow pro
10-11 Mileage: 1800
09-10 Mileage: 1300
06-07 Mileage: 2500
ATV: 2011 f350 6.2
Quote:
Originally Posted by nightraven View Post
what do you mean and what should i look out for? im kinda winging this lol im good at fabricating things and everyone kept telling me it was going to be ez lol. any advice at this point would be great. that is one and probably the main reason for starting this thread was for help advice and if anyone was thinking of doing this to this type of chassie thay would have something to look at.
should have got a 95 to 98 zr zrt or t cat there are others that work two of the 95 to 98 era think 94 two in your last pic is that the shock mount up at the top of the tubular frame if so thats way to high for the aglt mod should look like this
Attached Thumbnails
Click image for larger version

Name:	zrt 136 aglt 013.JPG
Views:	483
Size:	519.8 KB
ID:	204287   Click image for larger version

Name:	work 011.JPG
Views:	547
Size:	556.2 KB
ID:	204288   Click image for larger version

Name:	work 015.JPG
Views:	9796
Size:	561.4 KB
ID:	204289

Last edited by leighthomas; 06-20-2011 at 09:23 PM.
